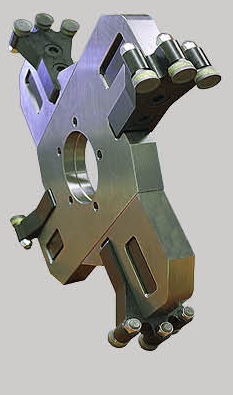

The Quadwheel®
Why grind when you can cut? Our wheels are designed to do just that - transform your stump grinder into a stump cutter!
This high performance wheel uses the same technology as the Greenwheel®, but has two additional holders that will cut through your stump even faster!
The unique design of this wheel provides approximately a 15" gap between each set of teeth. This provides several benefits:
- It allows you to start your cut farther into the stump
- Only one set of teeth are engaged at once. The break before the next set of teeth pass through the stump gives your motor a chance to regain RPM before starting another cut
- The arrangement of the teeth on each holder ensures the teeth will take the proper amount of material for each pass
Better By Design™
- Uses only 4 holders, 12 Wearsharp® teeth & 8 bolts, decreasing your maintenance costs
- Replaceable Tooth Holder is Grade 8 heat treated
- The placement of the holder is off-center, which places the tooth nuts on the center line of the wheel thus protecting them from wear
- The holder places the teeth off the face of the wheel, significantly reducing wheel wear
Replaceable mounting blocks use 3" LoPro® bolts to secure the holders in place.
The Wearsharp® Advantage
The unique design of our Wearsharp® allows the tooth to retain a sharp cutting surface, unlike traditional teeth that tend to round over. This provides a consistent cut throughout the life of the tooth, allowing you to maintain a faster sweep speed.
The Quadwheel® uses twelve of our 2-sided Wearsharp® teeth. We designed these teeth for wheels that use half the carbide on the tooth when cutting.
| 900 Series Greenteeth® Specifications | Wrench Size (in) | Nut Size (in) | Carbide (in) | Torque (ft. lbs.) |
|---|---|---|---|---|
